Description

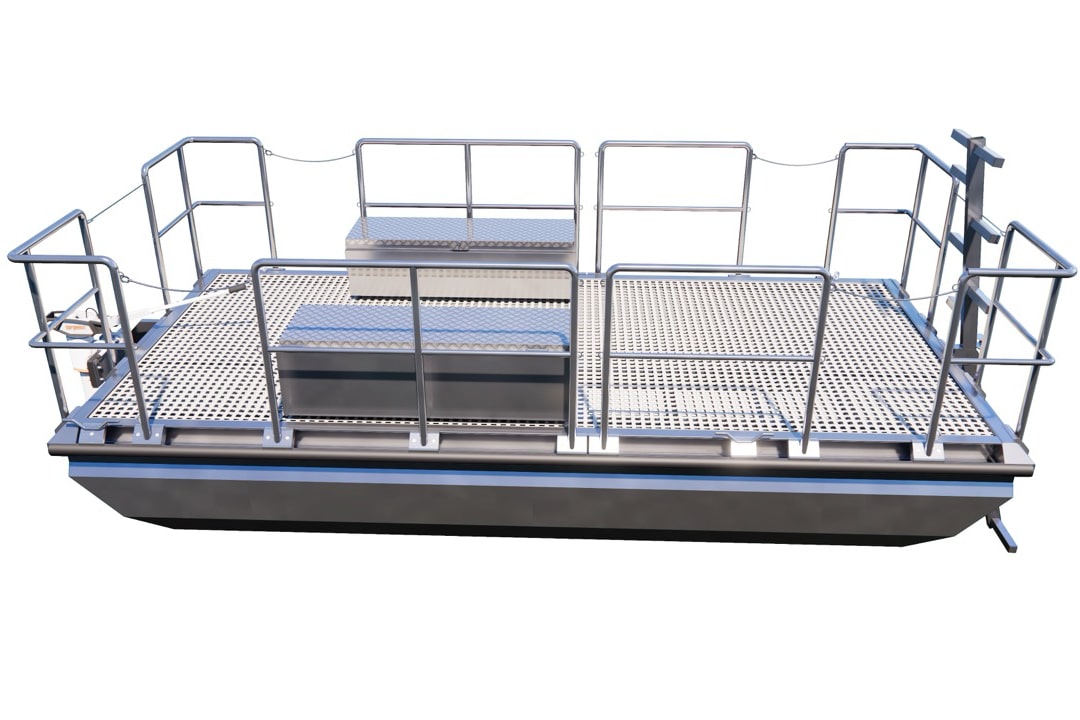

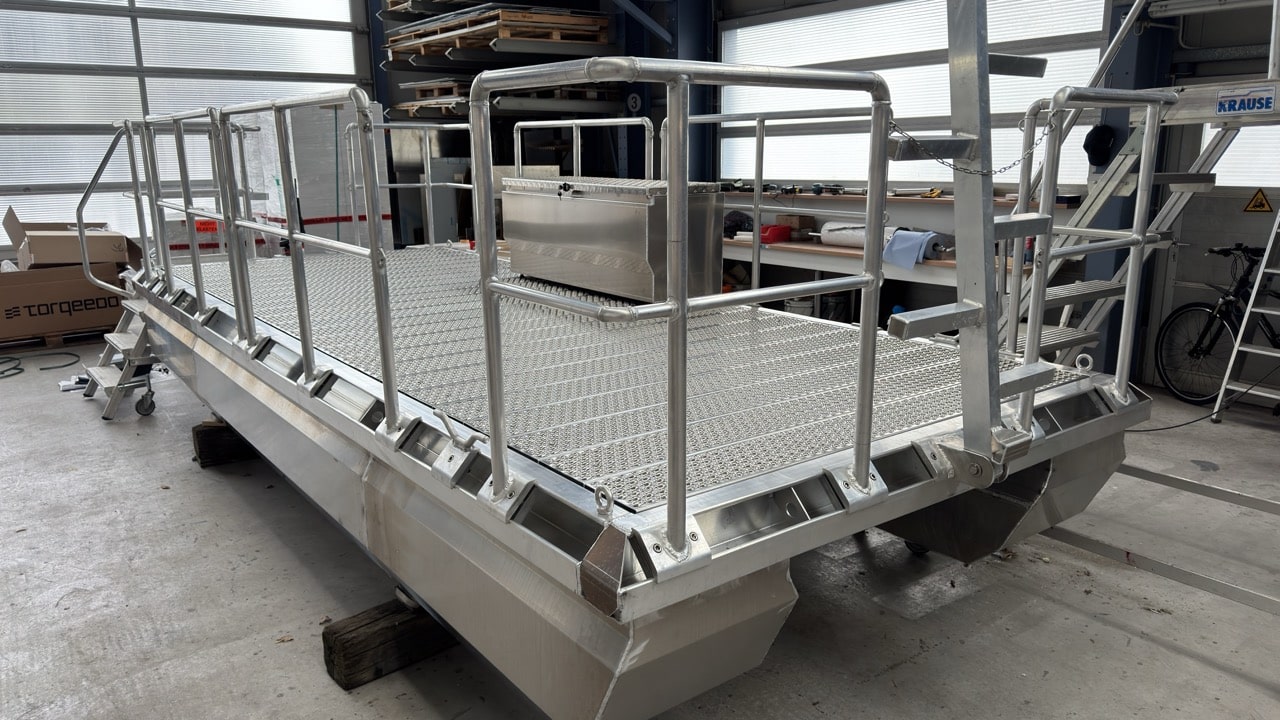

The PonTOM® Klassik 5.0 A is an open aluminum catamaran built at the Kiebitzberg® shipyard in Havelberg and configured as a work platform for divers, hydraulic engineering, surveying, and maintenance work. 5.00 m hull length, 2.40 m wide, with a 4.70 x 2.10 m open work deck in between, free of trip hazards.
Two floats made of seawater-resistant aluminum with watertight welded bulkheads support the OpenG® frame. Railings, storage lockers, the helm station, and the diving ladder are clamped to the frame profile and can be repositioned or removed as needed for the application. A fender strip protects quay walls and sheet pile walls.
The boat is electrically powered, ranging from a tiller-steered motor for calm waters to a 6-kW outboard with a helm station. We build other lengths and widths upon request; its smaller sister model is the Klassik 4.0 A.
Technical data:
- Design Category D (protected inland waters)
- Overall length: approx. 5.30 m with motor mount; hull length 5.00 m
- Overall width: approx. 2.40 m (excluding fender trim)

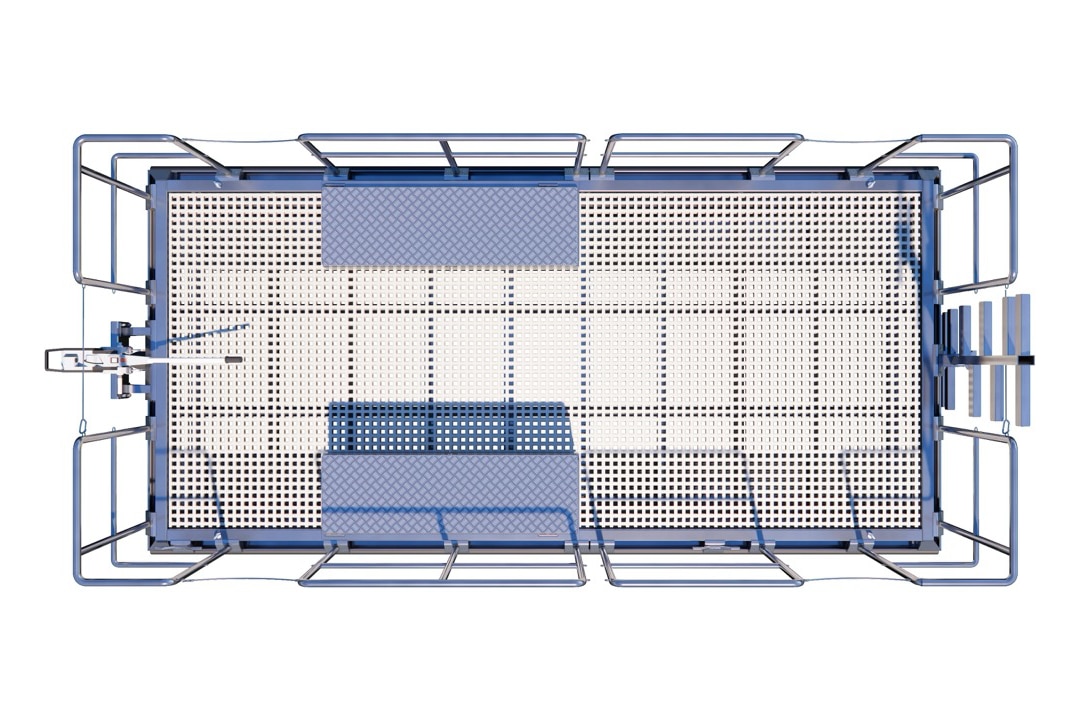

- Usable deck area within the railings: approx. 4.70 x 2.10 m, approx. 9.9 m²
- Deck height above ground: approx. 0.75 m; with railing, approx. 2.02 m
- Draft when fully loaded: approx. 0.30 m
- Number of people: max. 6
- Payload: max. 725 kg (passengers, luggage, and powertrain)
- Drive power: max. 15 kW
Design values; the final CE data are determined by the selected configuration.
Equipment
- 2 aluminum floats, 5.00 m long, each consisting of three sections with watertight welded bulkheads, 4 sacrificial anodes
- OpenG® frame with a straight bow section and cross members, permanently welded to the floats
- Decking: FRP grating, 38 x 38 mm, finely sanded (alternatively, Graepel universal grating with plank-like appearance)
- Motor mount for up to 15 kW / 20 PS, 4 cleats
- Railing made of 40-mm round tubing, removable, with access step
- CE certification, general plan, manual, test drive, and acceptance inspection in Havelberg
Drive (Options)
- Torqeedo Travel XP RL with Tiller, 1.4 kWh Battery
- Torqeedo Travel XP RL with control console, 1.4 kWh battery
- Torqeedo Cruise 3.0 with helm station, 5 kWh battery
- Torqeedo Cruise 6.0 with helm station, 5 kWh battery
- Conventional engines (e.g., Suzuki) are also an option
Options
- Diving ladder for 600 mm freeboard
- Aluminum control console with a solid surface top
- Storage chests with corrugated metal lids, which can be used as benches
- M16 mounting eyes for bolting through the OpenG® profile
- Antifouling Treatment for Floats
- WPC Corrugated Deck Board
- Pile anchor for manual operation
- Anker & Co Equipment Package, Trailer
- and much more.
