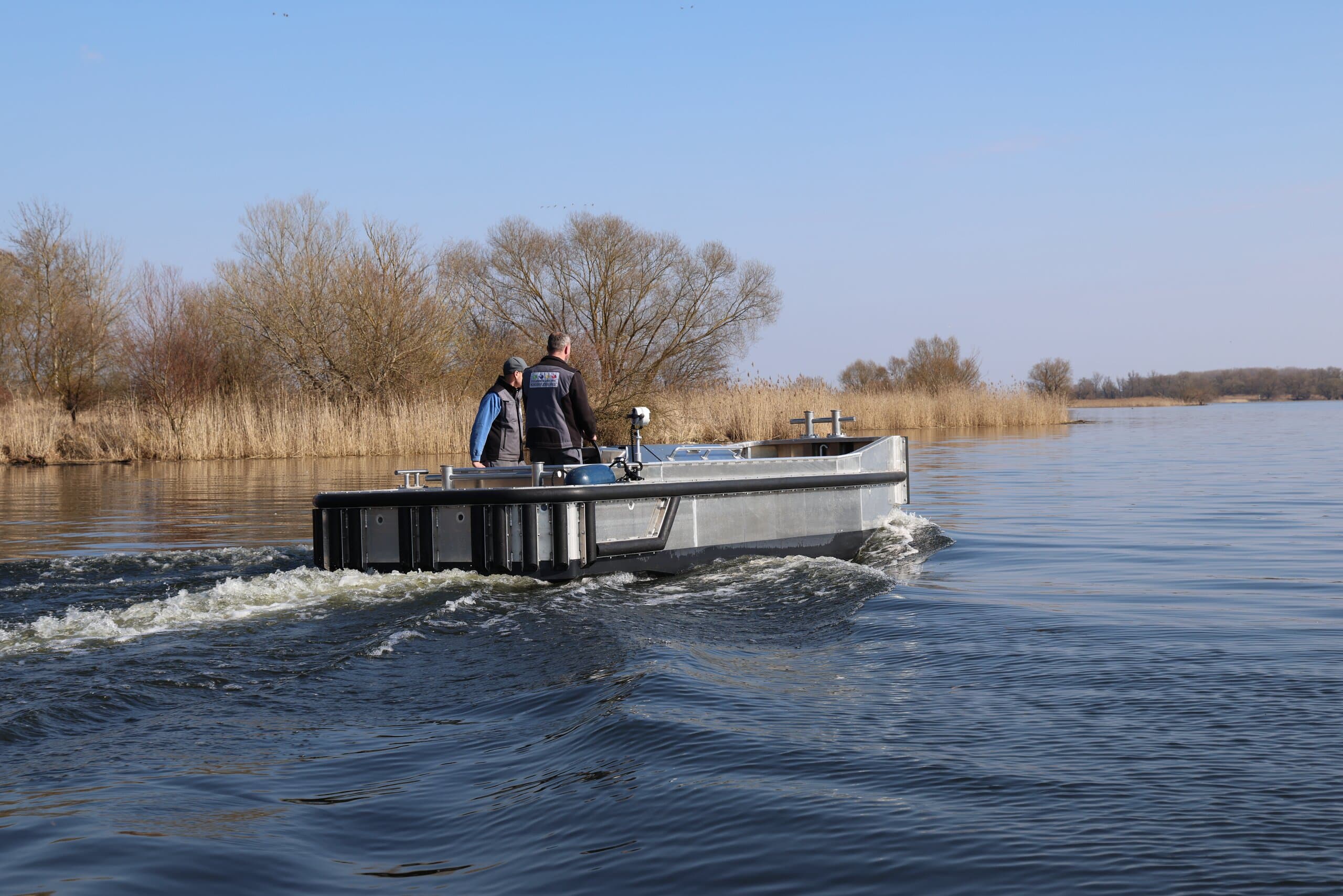

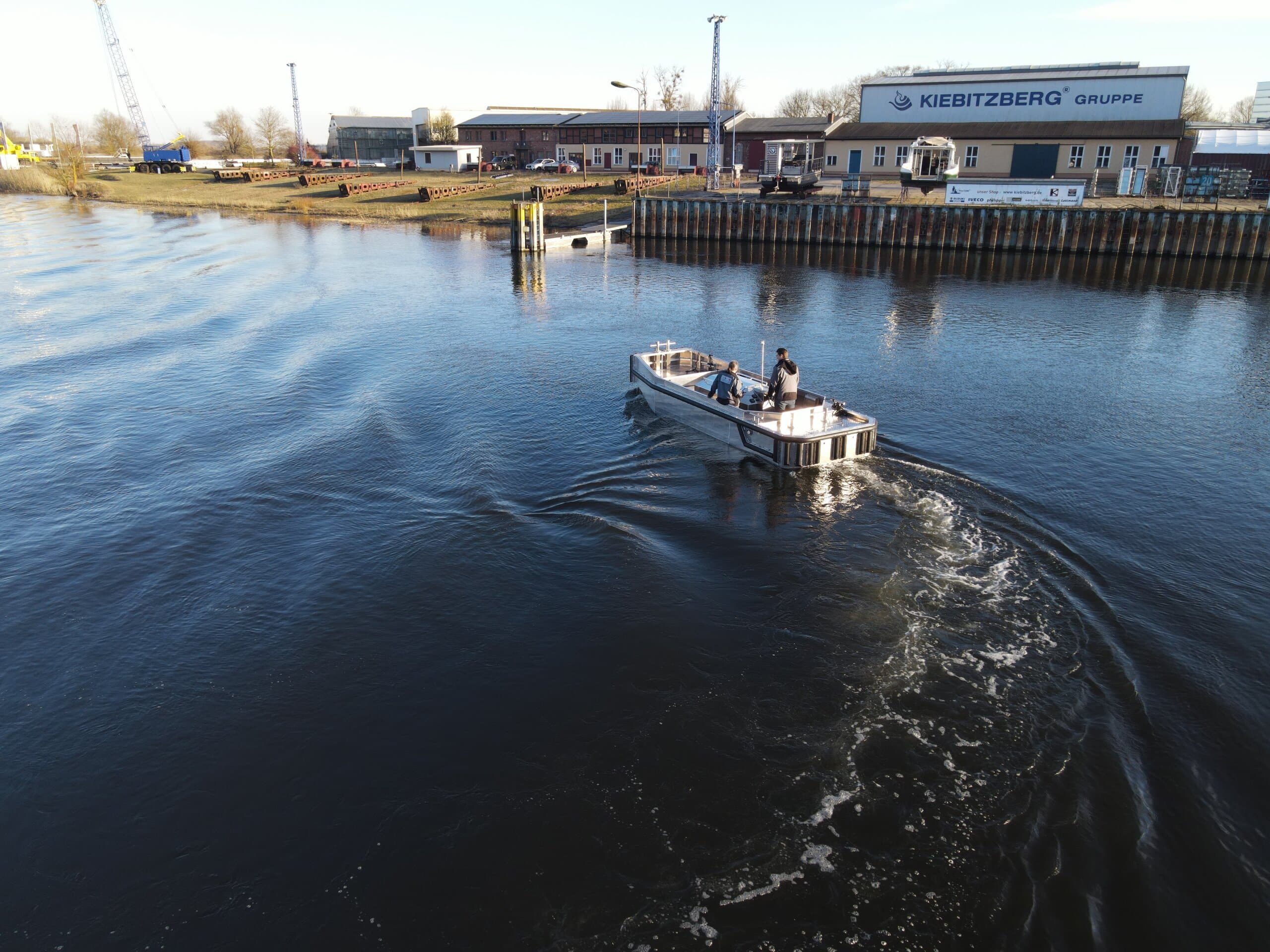

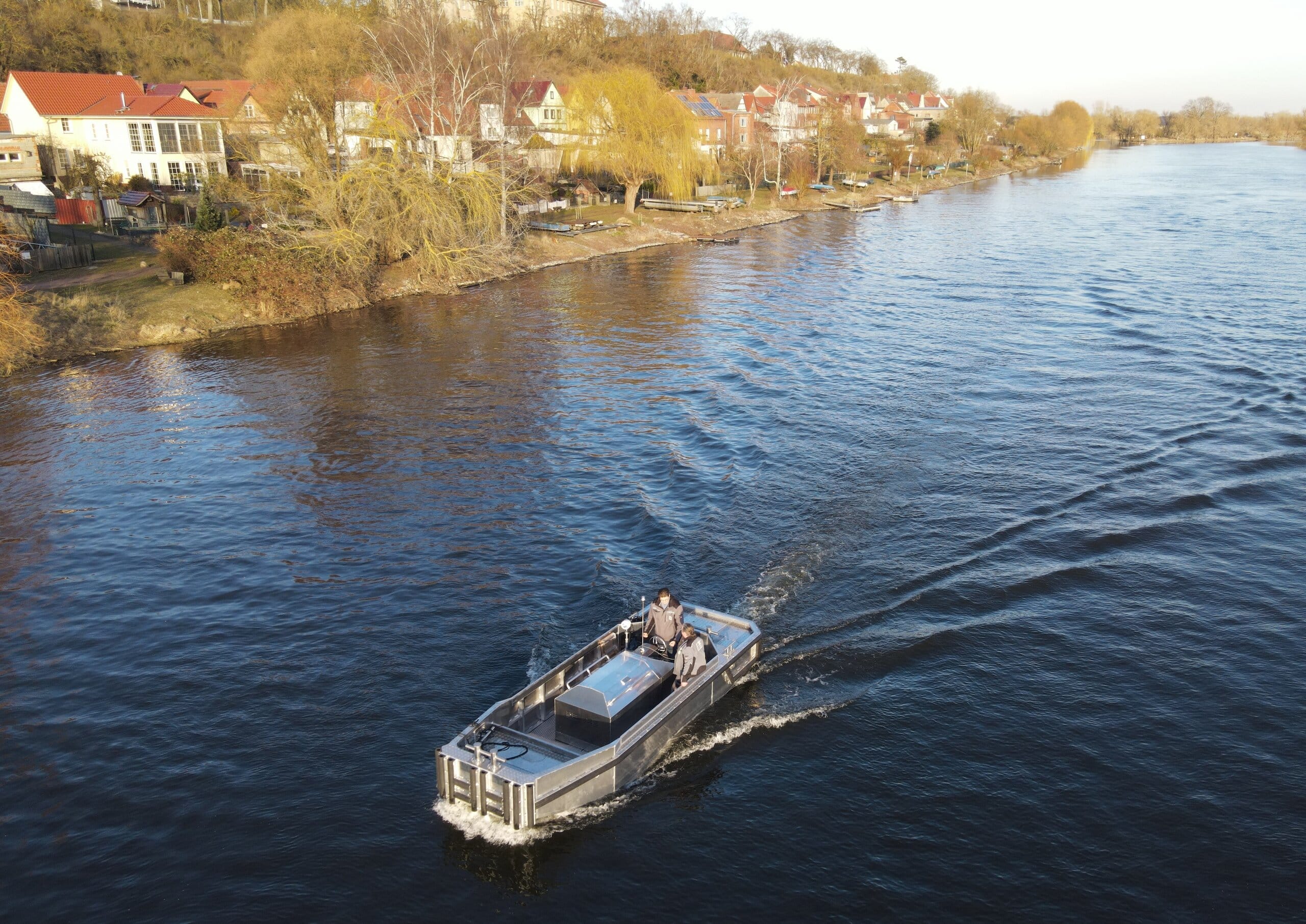

PonTOM® ODIN 6.9 push boat - compact, maneuverable, powerful.
Brief description
The Push boat PonTOM® ODIN is an extremely compact work and push vehicle made of seawater-resistant aluminum. Developed together with a renowned German hydraulic engineer, the PonTOM® Empor ODIN is designed from the ground up for practicality.
At just 6.90 m long and 2.50 m wide (trailerable), it delivers impressive thrust, precise maneuverability thanks to the double rudder blade and maximum robustness thanks to the all-round fender rail and solid thrust shoulders. Two drive options - 150 hp or 250 hp - cover all applications from municipal use to professional hydraulic engineering. Manufactured in from THE Aluminum shipyard in beautiful Havelberg. The best way to see how the pushboat handles on the water is to watch it in motion: Watch the demo video
Target groups
- Hydraulic engineering companies (pile driving, hauling, piling work, pushing & towing tasks)
- Authorities and building yards (dredging, harbor maintenance, buoy service, clearing and recovery work)
- Fire departments, THW and waterways and shipping administration (logistics and work trips)
Highlights
- Compact & trailerable: 6.90 × 2.50 m - ideal for smaller areas
- Robust work deck with non-slip, removable covering

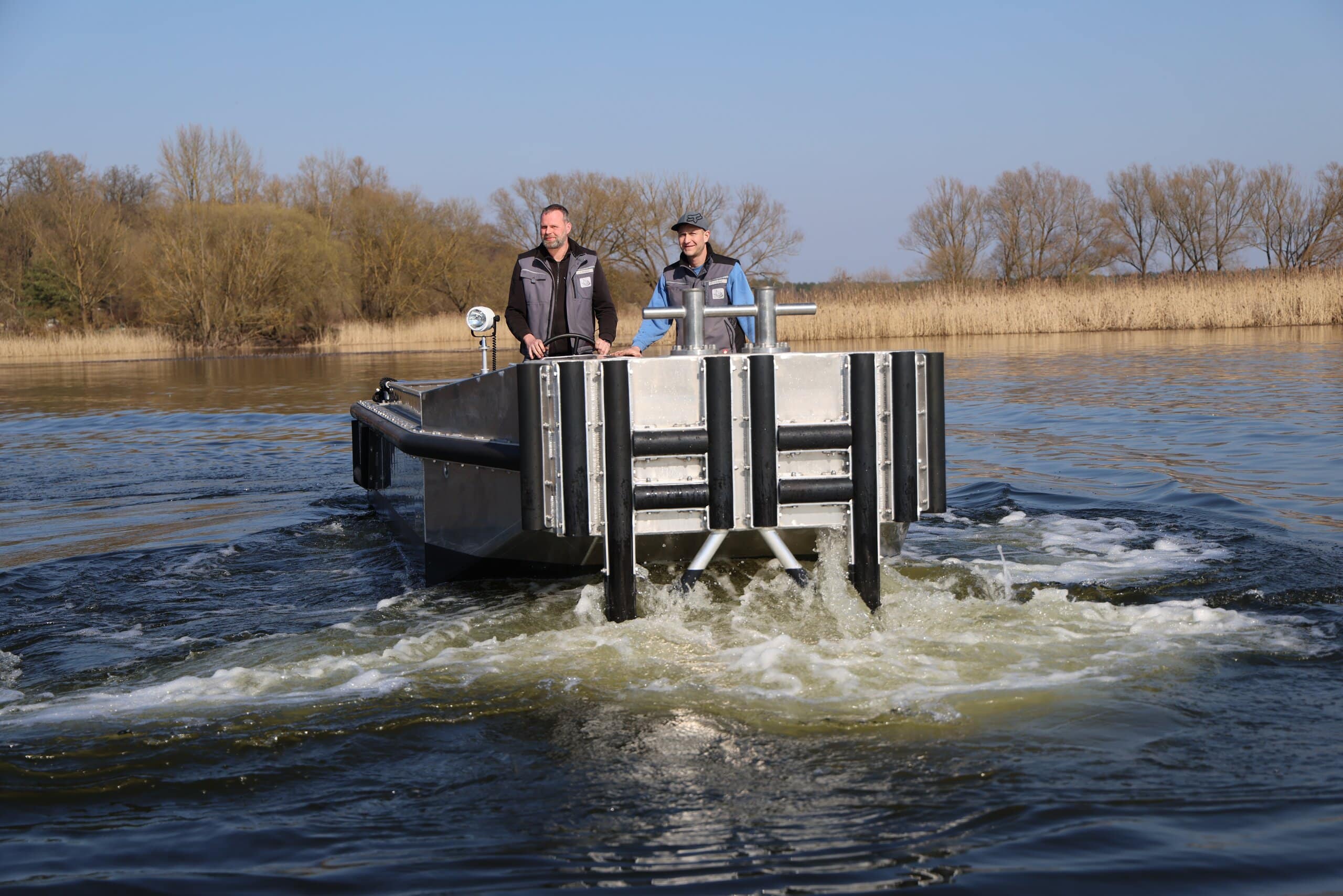

- All-round fender strip and solid push shoulders for tough applications
- Shaft system with large propeller and double rudder blade for precise maneuvers
- Removable engine hood, deck hatches and inspection openings for easy maintenance
- Aluminum construction with integrated surface cooling - lightweight, robust, low-corrosion
Drive options
- PonTOM® ODIN 6.9-150 - 112 kW/150 hp Cummins diesel inboard engine
- PonTOM® ODIN 6.9-250 - 184 kW/250 hp Cummins diesel inboard engine for higher bollard pull and thrust reserves, individually configurable
Technical data
- Overall length: 6.90 m
- Hull length: 6.70 m
- Waterline length: 6.19 m
- Overall width: 2.50 m
- Hull width: 2.30 m
- Draught: 0.78 m
- Unladen weight: 3.59 t
- Material: Aluminum AlmG4.5
- Outer skin: 8 mm
- Steering: Hydraulic steering with double rudder blade
- Cooling: Surface cooling integrated in outer skin
- Equipment: double bollards, cleats, steps, inspection openings, fender rail, thrust shoulders, removable engine hood, removable deck covering, integrated diesel tank with filler neck
Scope of delivery / options
- Hydraulic double rudder system with aluminum rudder blades
- Propeller, shaft, stern tube, exhaust system
- CE certification, commissioning and test drive
- Sacrificial anodes, additional deck covering, special equipment according to application
Advantages for hydraulic engineers and authorities
- Precise shifting and pushing thanks to double rudder blade
- Safe working environment with non-slip surfaces and high dropside area
- Low maintenance thanks to removable hood and good accessibility
- Trailerable and therefore flexible for changing locations
The next steps
- Advice and offer: We configure PonTOM® push boat ODIN 150 or 250 exactly for your application. Enquire today or call us on 039387 72540.
- Do you want to put out to tender? Save time and request our Tender template as a starting point for your individual tender.
- View references: PonTOM® Odin 6.9 in use - the previous version of the boat is already in use at various locations in northern Germany - we would be happy to arrange a viewing appointment to exchange experiences.
Changes and errors excepted
